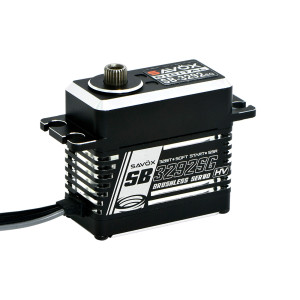

SB-3292SG Savox Servo Digitale Brushless 40kg 0,07s (7.4v) High Voltage 8.4v
4
SB-3292SG
€144.99
Tax included
Specifications:
| Line | MONSTER LINE |
| Application | CAR / AIRPLANE |
| Servo Size | Standard |
| Operating Voltage | 6.0V-8.4V |
| Speed @6.0V | 0.085 s/60° |
| Torque @6.0V | 32.0 kg/cm |
| Speed @7.4V | 0.07 s/60° |
| Torque @7.4V | 40.0 kg/cm |
| Speed @8.4V | 0.055 s/60° |
| Torque @8.4V | 55.0 kg/cm |
| Amplifier Type | Digital Controller |
| Motor Type | Patented Lightweight Brushless |
| Case Type | Aluminum |
| Protection | Water Resistant |
| Dimensions (L x W x H) | 40.3 x 20.2 x 38.7 mm |
| Weight | 70 g |
| Gear Type | Specialized Steel |
| Compability | Sanwa SSR |
| PCB Board | 12bit 4096, Softstart, Lock protection |
| Horn Gear Spline | 25T(Φ6) |
| Rotating Direction | Counterclockwise (when 1000→2000 μsec) |
| Max Travel | ~130° (when 900→2100 μsec) |
| Operating Travel | 100° (when 1000→2000 μsec) |
| Neutral Position | 1500 μsec |
| Bearing | 3x Ball Bearings |
| Potentiometer | VR |
| Cable Diameter | 22 AWG |
| Cable Length | 300 ±5 mm |
| Connector | JR Connector |
| Stall Current @6.0V | 8000 mA |
| Operating Current @6.0V | 200 mA |
| Stall Current @7.4V | 10000 mA |
| Operating Current @7.4V | 220 mA |
| Stall Current @8.4V | 12000 mA |
| Operating Current @8.4V | 250 mA |
| Idle Current | 5 mA |
| Dead Band Width | 3-5 μsec |
| Frequency Range | 50-360 Hz |
| Control System | Pulse width modification |
| Operating Temperature | -10°C to 50°C |
Data sheet
- MPN
- SB-3292SG
- Marca
- savox
